- The world 's advanced hydraulic parts have been verified by various harsh environments and working conditions such as earthwork, crushing, continuous sports cars, etc., with precise control and agile movements.
- Equipped with a force-increasing function (increased by 8%), it can easily cope with heavy load conditions such as hard soil excavation.
- The four-wheel drive ZF transmission system, the leading high-reliability walking motor provides strong driving force, the climbing performance is more prominent, and it can travel at high speed on public roads for a long time.

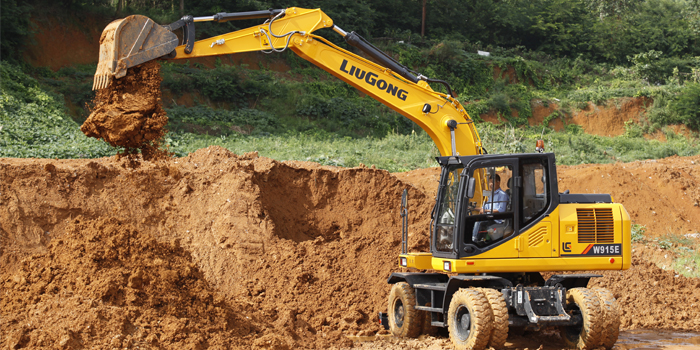

W915E
Operating Weight:
14,600 kg
Rated Power:
97 kW
Bucket Capacity:
0.36-0.58 m3
W915E
Product Features
W915E
Specifications
| Operating weight | 14600 kg |
| Engine power | 97 kW (130 hp / 132 ps) @ 2,200 rpm |
| Std. Bucket capacity | 0.58 m3 |
| Travel Speed (High) | 30 km/h |
| Travel Speed (Low) | 7.6 km/h |
| Swing Speed | 11 rpm |
| Arm Digging Force (ISO) | 73.9 kN |
| Bucket Digging Force (ISO) | 92.8 kN |
| Shipping length | 7690 mm |
| Shipping width | 2540 mm |
| Shipping height | 3150 mm |
| Boom | 4600 mm |
| Arm | 2100 mm |
| Max. Digging Reach | 7981 mm |
| Max. Digging Reach on Ground | 7786 mm |
| Max. Digging Depth | 4912 mm |
| Max. Vertical Wall Digging Depth | 4324 mm |
| Max. Cutting Height | 8830 mm |
| Max. Dumping Height | 6346 mm |
| Min. Front Swing Radius | 2385 mm |
| Dozer-up | 500 mm |
| Dozer-down | 120 mm |
| Model | Cummins QSB 4.5 |
| Emission Regulation | Tier 3 / Stage IIIA |
| Main Pump Total Flow | 2x175 L/min (2x46 gal/min) |
| Relief Pressure, main | 34.3 MPa |
