- The upper chassis adopts modern production process,which is extra-large space, electro-hydraulic separation design, and is equipped with American Cummins QSX15 engine with a maximum power of 380kW.
- The under carriage adopts the special design of rotary drilling rig, with H-type telescopic structure ,easy for transportation.
- The Center-mounted winch with single-layer rope design increases the life of the wire rope and long-term heavy loads. Pin connection for easy operation and maintenance.
- The rotary head is large torque and multi-layer buffer structure design, which effectively reduces the damage of the rotary head caused by the impact of the kelly bar.
- The crowd system system is available for crowd cylinder type as standard, and crowd winch type is optional.
- The mast is high strength and good straightness. The installation positions of the upper and middle masts are interchangeable. The option of crowd winch type can be used to adjust the strokes.
- The mast head is high strength materilas and simple structure.
- Large triangle structure support system ensure best stability.
- With small turning radius, variable combination and superimposed counterweight, which adjust according to working conditions, easy to disassemble and convenient to transport.
SH46A
Rotary Torque:
460 kN·m
Depth:
120 m

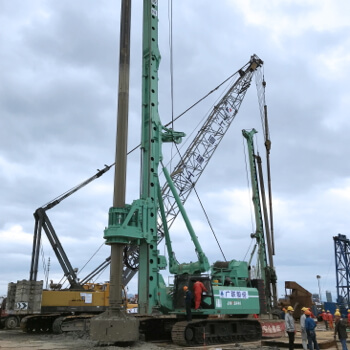

SH46A
Product Features

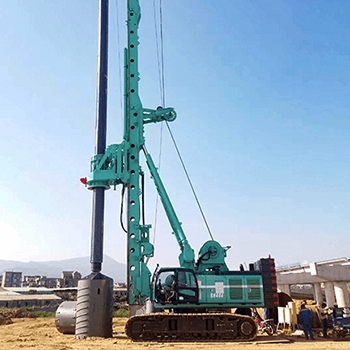

SH46A

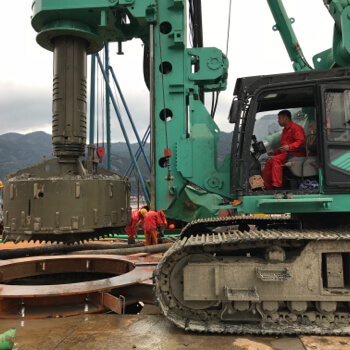

SH46A

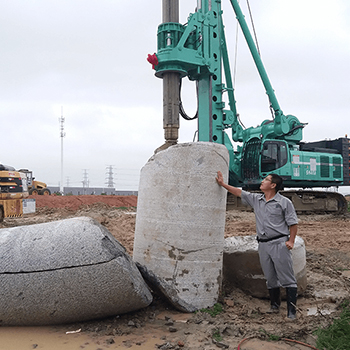

SH46A
SH46A
Specifications
| Working height | 31390 mm |
| Weight ( without drilling tools) | 140000 kg |
| Upper chassis | JS120 |
| Engine | CUMMINS QSX15 |
| Rated Power | 380@1800 |
| Hydraulic system flow | 2×435+144 L/min |
| Hydraulic system pressure | 33 MPa |
| Fuel tank capacity | 910 L |
| Hydraulic tank capacity | 580 L |
| Extendable under carriage | JT100 |
| Shoes width | 900 mm |
| Chassis length | 6360 mm |
| Undercarriage width | 3500-5000 mm |
| Traction force | 818 kN |
| Travelling speed | 1.5 km/h |
| Rotary torque | 460 kN·m |
| Rotation speed | 6-24 r/min |
| Single line pull of Main winch | 500 kN |
| Rope dia of Main winch | 40 mm |
| Max lifting speed of Main winch | 60 m/min |
| Single line pull of Auxiliary winch | 110 kN |
| Rope Dia of Auxiliary winch | 18 mm |
| Maximum lifting speed of Auxiliary winch | 40 m/min |
| Stroke | 6000 mm |
| Crowd force | 400 kN |
| Pulling force | 480 kN |
| Standard max stroke | 11000、22000 mm |
| Crowd force | 460 kN |
| Pulling force | 460 kN |
