- Special designed floating pipe and hose reel protects the hydraulics and air pipes and hoses, achieving a stable output of hydraulic energy and a longer service life of the oil lines.
- Standard two-stage effectively protect the environment and the health of operators.
- The unique control system offers auto adjustment of feed rate and pressure, rotation torque and impact pressure so as to reduce the failures such as jamming.
- Utilization of high precision filter elements ensures the cleanliness of hydraulics and extends service life time of the hydraulic components.
DH45A-H
Borehole diameter:
90-115 mm
Rated power:
59kW

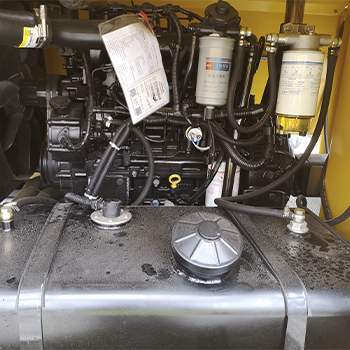

Engine brand:
Yuchai
DH45A-H
Product Features
DH45A-H
DH45A-H
DH45A-H
DH45A-H
Specifications
| Borehole Diameter | 90-115 mm |
| Pipe Sizes | 64/76x3000 mm |
| Hammer Size | 3’’/4’’ |
| Max Rotation Speed | 120 rpm |
| Max Rotation Torque | 1900 N·m |
| Feeding Stroke | 3000 mm |
| Feed Extension | 900 mm |
| Feed Speed | 0.59 m/s |
| Feed Force | 15 kN |
| Pull Up Force | 25 kN |
| Length of Feed Beam | 4500 mm |
| Max Walking Speed | 2 km/h |
| Track Oscillation | 290 ° |
| Grad Ability | 30 ° |
| Rated Power | 59 kW |
| Engine | YuChai |
| Length | 5000 mm |
| Width | 2300 mm |
| Height | 2050 mm |
| Weight | 4900 kg |
