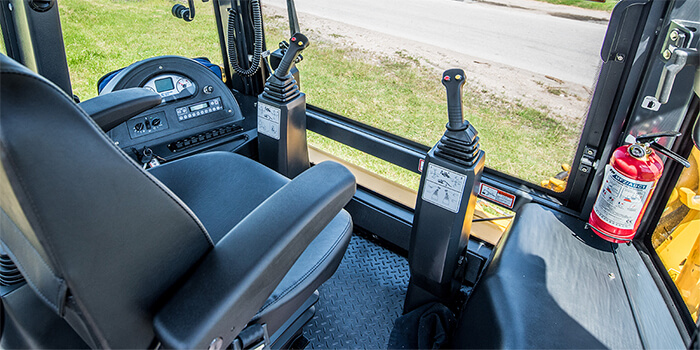

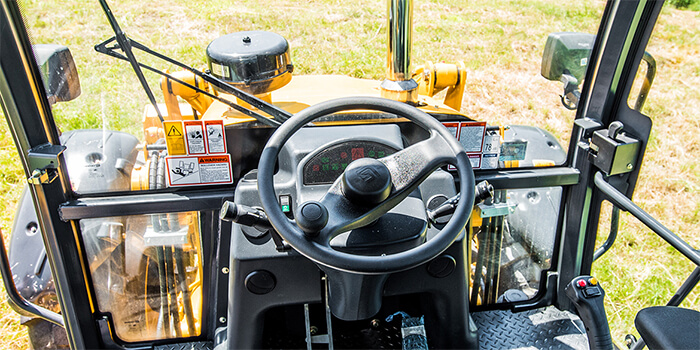

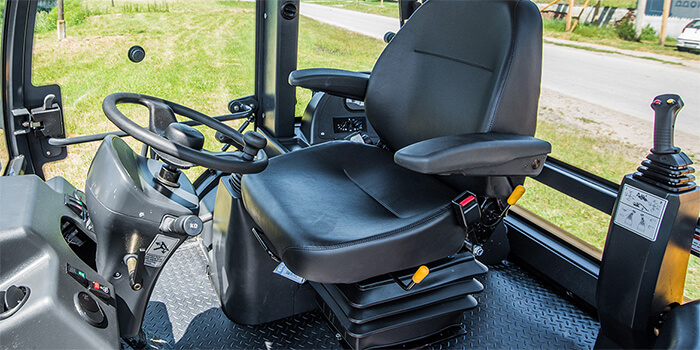

- Ergonomic designed cab with improved overall visibility and well placed controls. They are easy to see, easy to reach and easy to handle.
- Reliable Perkins engine and Carraro wet axles. Power assisted service brakes reduces fatigue. Frame designed for high resistance and efficient load distribution ensuring longer life.
- Easy engine access, convenient placement of key parts and fluid refill points.
- Tandem gear pump enables fine grading and has flow control via dashboard switch. Meets EU stage IIIA/EPA tier 3 emission standards.
CLG777A-S
Operating weight:
9480 kg
Diging depth:
4345 mm
CLG777A-S
Product Features
CLG777A-S
CLG777A-S
CLG777A-S
CLG777A-S
Specifications
| Gross Power | 74.5 kW (100 hp) @ 2200 rpm |
| Net Power | 72 kW (97 hp) @ 2200 rpm |
| Operating Weight | 9480 kg |
| Maximum Digging Depth | 4345 mm |
| Maximum speed | 6.6 - 41 km/h |
| Turning Radius Outside of Front Tire w/o single braking | 4850 mm |
| Turning Radius Outside of Bucket w/o single braking | 5200 mm |
| Bucket Breakout Force, General bucket | 59.6 kN |
| Bucket Digging Force | 58.2 kN |
| Maximum Dump Height (Loading) | 2746 mm |
| Loading Height (Digging) | 3586 mm |
| Model | Perkins 1104D-44TA |
| Emission Standard | EPA Tier 3 / EU Stage IIIA |
| Standard Bucket Heaped Capacity | 1.1 m3 |
| Standard Backhoe Bucket Heaped Capacity | 0.2 m3 |
