- Powered by a world class engine delivering unmatched and dependable power in its class yet it produce low noise and low emission.

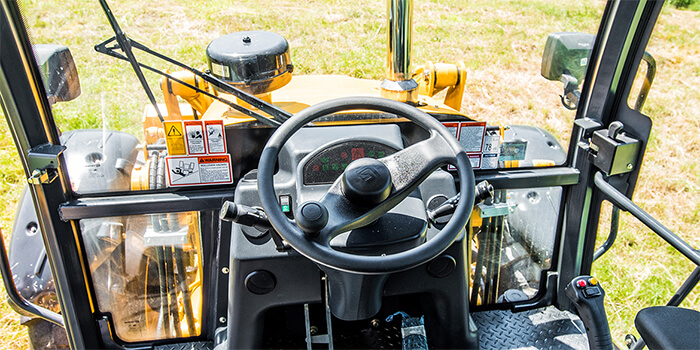

- Ergonomic designed cab with improved overall visibility and well placed controls. They are easy to see, easy to reach and easy to handle.
- Perfectly matched power train system, the differential lock on rear axle aids to deliver high tractive force. Oil-bath brake allows unilateral braking function to be executed, requiring minimum turning radius.
- Easy engine access, convenient placement of key parts and fluid refill points.
CLG764A
Operating weight:
8300 kg
Diging depth:
4440 mm/4333mm
CLG764A
Product Features
CLG764A
CLG764A
Specifications
| Gross Power | 75 kW (101 hp) @ 2200 rpm |
| Net Power | 72 kW (97 hp) @ 2200 rpm |
| Operating Weight | 8300 kg |
| Maximum Digging Depth | 4406 mm |
| Maximum speed | 9.8 - 44 km/h |
| Turning Radius Outside of Front Tire w/o single braking | 4800 mm |
| Turning Radius Outside of Bucket w/o single braking | / mm |
| Turning Radius Outside of Front Tire w/ single braking | / mm |
| Bucket Breakout Force, General bucket | 52 kN |
| Bucket Digging Force | 52.1 kN |
| Maximum Dump Height (Loading) | 2691 mm |
| Loading Height (Digging) | 3586 mm |
| Model | Yuchai YC4A105Z-T20 |
| Emission Standard | EPA Tier 2 / EU Stage II |
| Standard Bucket Heaped Capacity | 1 m3 |
| Standard Backhoe Bucket Heaped Capacity | 0.2 m3 |
| Download Brochure 1 Download Brochure 2 |
| Gross Power | 81 kW (108 hp) |
| Net Power | 77 kW (103 hp) |
| Operating Weight | 8300 kg |
| Maximum Digging Depth | 4440 mm |
| Maximum speed | 9.8 - 44 km/h |
| Turning Radius Outside of Front Tire w/o single braking | 4800 mm |
| Turning Radius Outside of Bucket w/o single braking | 5850 mm |
| Bucket Breakout Force, General bucket | 52 kN |
| Bucket Digging Force | 52.1 kN |
| Maximum Dump Height (Loading) | 2691 mm |
| Loading Height (Digging) | 3586 mm |
| Model | Yuchai YCA05K110-M300 |
| Emission Standard | Brazil Stage III |
| Standard Bucket Heaped Capacity | 1 m3 |
| Standard Backhoe Bucket Heaped Capacity | 0.2 m3 |
