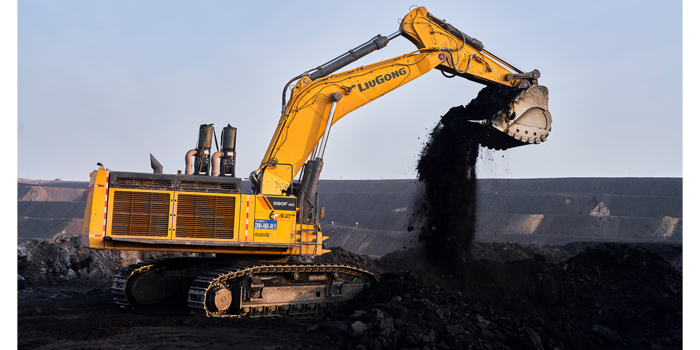

- Take a walk around the New 990FHD and you will see the difference. It’s a big, tough machine that’s high on productivity, reliability and operator safety and comfort.
- Punching a massive 496 kN of digging force, the New 990FHD easily out-performs any competitive machine in its class.
-
The 990FHD works hard to deliver the best return for your investment by reducing overheads on fuel through smart engine technology to ensure maximum efficiency, to state-of-the-art engine oil and hydraulic fluid filters increasing performance by thousands of hours.
-
The New 990FHD is designed to deliver maximum uptime, shift after shift. With toughness and durability built into the heart of machine, the 990FHD works harder for longer in the toughest of jobsites.
-
Tough, dusty conditions give air filters a real workout. The oil bath air pre-filter on the New 990FHD protects, cleans and extends the filter life to 1,000 HOURS.
-
Our new pressurized cab keeps dust, noise and contaminants away while the automatic climate control surrounds you with fresh, filtered air for cooling or heating depending on the environment.
990FHD
Operating Weight:
95,000 kg
Rated Power:
447.5 kW
Bucket Capacity:
6.2 m3
990FHD
Product Features
990FHD
Specifications
| Operating Weight | 95,000 kg |
| Rated Power | 447.5 kW (600 hp) @ 2,100 rpm |
| Std. Bucket capacity | 6.2 m3 |
| Travel speed(High) | 4.2 km/h |
| Travel speed(Low) | 2.6 km/h |
| Maximum swing speed | 6.4 rpm |
| Arm Digging Force (ISO) | 391 kN |
| Arm Digging Force Power Boost | 413 kN |
| Bucket Digging Force (ISO) | 471 kN |
| Bucket Digging Force Power Boost | 496 kN |
| Shipping Length | 13,887 mm |
| Shipping Width | 4,500 mm |
| Shipping Height | 5,228 mm |
| Track shoe width (std) | 650 mm |
| Boom | 7,250 mm |
| Arm | 2,925 mm |
| Max. Digging Reach | 12,488 mm |
| Max. Digging Reach on Ground | 12,172 mm |
| Max. Digging Depth | 7,185 mm |
| Max. Vertical Wall Digging Depth | 5,395 mm |
| Max. Cutting Height | 12,342 mm |
| Max. Dumping Height | 7,979 mm |
| Min. Front Swing Radius | 5,415 mm |
| Model | Perkins 2806 IIIN |
| Emission Regulation | Tier 3 / Stage IIIA |
| Main Pump Total Flow | 2 × 504 L/min |
| Relief Pressure, main | 35 MPa |
