- The L9 PLUS engine, exclusively built by Cummins for LiuGong excavators, has staged combustion to control combustion temperature and pressure, which greatly improves energy conversion efficiency.
- According to the operating characteristics of the excavator, avoid high fuel consumption areas and match the hydraulic system, fuel consumption reduced by 15%.
- Oil bath pre-filter, suitable for mining dust harsh working conditions.
- The industry 's largest cab with standard sun visors, sun shades on both sides, 10 vents, providing luxurious driving experience.

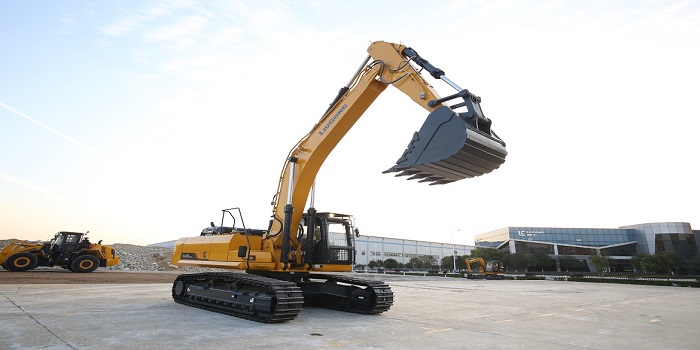

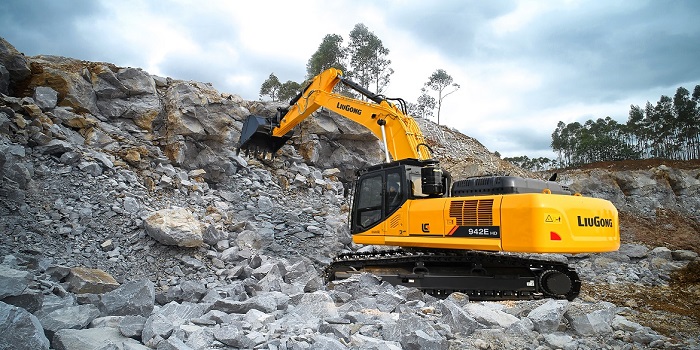

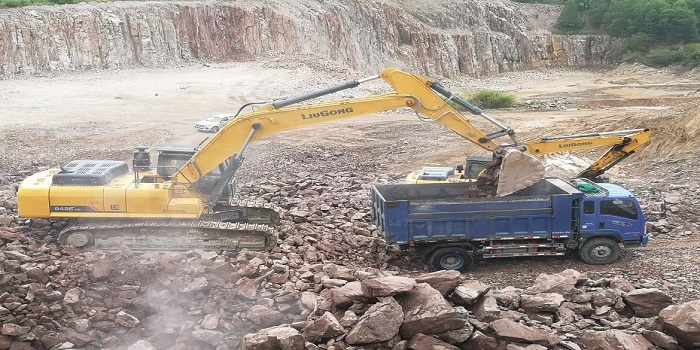

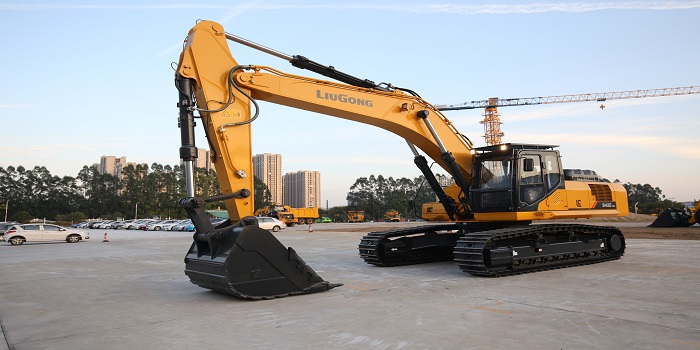

942EHD
Operating Weight:
42,000-42,800 kg
Rated Power:
214 kW
Bucket Capacity:
2.1-2.4 m3
942EHD
Product Features
942EHD
942EHD
942EHD
942EHD
Specifications
| Operating weight | 42000 kg |
| Engine power | 214 kW (287 hp) @ 2100 rpm |
| Std. Bucket capacity | 2.1 m3 |
| Travel speed(High) | 5.4 km/h |
| Travel speed(Low) | 2.9 km/h |
| Maximum swing speed | 9.8 rpm |
| Arm breakout force | 209 kN |
| Arm breakout force Power boost | 227 kN |
| Bucket breakout force | 270 kN |
| Bucket breakout force Power boost | 290 kN |
| Track shoe width (std) | 600 mm |
| Boom | 6400 mm |
| Arm | 2900 mm |
| Digging reach | 10728 mm |
| Digging reach on ground | 10527 mm |
| Digging depth | 6890 mm |
| Vertical wall digging depth | 5085 mm |
| Cutting height | 9818 mm |
| Dumping height | 6655 mm |
| Minimum front swing radius | 4385 mm |
| Model | Cummins L9PLUS |
| Emission | EU Stage III/ CN III |
| System maximum flow | 2×351 L/min |
| System pressure | 34.3 MPa |
