- Cummins VGT technology engine delivers 5% more torque, 20% increase on slew torque

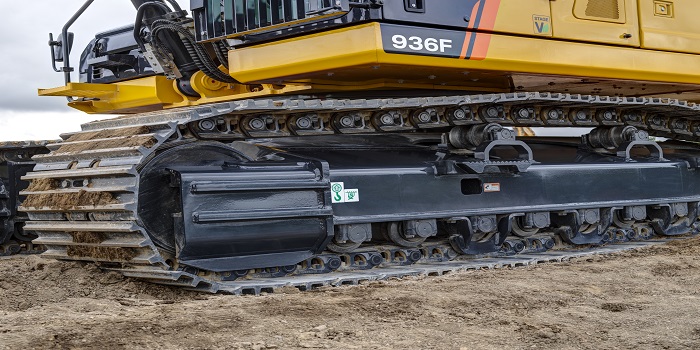

- Longer undercarriages & increased counterweight masses; Extra strong boom & arm - reduces stress by 25%
- Electro-hydraulic control technology & Boom float technology
- 360 degree camera; Ground level daily inspection
936F
Operating Weight:
38,800-39,600 kg
Rated Power:
231 kW
Bucket Capacity:
1.8 m3
936F
Product Features
936F
936F
936F
936F
Specifications
| Operating weight | 38800 kg |
| Engine power | 231 kW @ 2100 rpm |
| Std. Bucket capacity | 1.8 m3 |
| Travel speed(High) | 5.5 km/h |
| Maximum travel speed (Low) | 3.4 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 196 kN |
| Bucket breakout force | 290 kN |
| Shipping length | 11300 mm |
| Shipping width | 3190 mm |
| Shipping height | 3800 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6400 mm |
| Arm | 3200 mm |
| Digging reach | 11100 mm |
| Digging reach on ground | 10900 mm |
| Digging depth | 7340 mm |
| Vertical wall digging depth | 6460 mm |
| Cutting height | 10240 mm |
| Dumping height | 7160 mm |
| Minimum front swing radius | 4465 mm |
| Model | Cummins L9 |
| Emission | Stage V / Tier 4F |
| System maximum flow | 2×351 L/min |
| System pressure | 34.3 MPa |
| Download Brochure |
| Operating weight | 38500 kg |
| Engine power | 264 kW @ 2100 rpm |
| Std. Bucket capacity | 1.8 m3 |
| Travel speed(High) | 5.5 km/h |
| Travel speed (Low) | 3.4 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 196 kN |
| Bucket breakout force | 290 kN |
| Shipping length | 11300 mm |
| Shipping width | 3190 mm |
| Shipping height | 3800 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6400 mm |
| Arm | 3200 mm |
| Digging reach | 11100 mm |
| Digging reach on ground | 10900 mm |
| Digging depth | 7340 mm |
| Vertical wall digging depth | 6460 mm |
| Cutting height | 10240 mm |
| Dumping height | 7160 mm |
| Minimum front swing radius | 4465 mm |
| Model | Cummins L9PLUS |
| Emission | EU Stage IIIA |
| System maximum flow | 2×351 L/min |
| System pressure | 34.3 MPa |
