- Cummins B6.7 engine delivers 5% more torque- 20% increase on slew torque
- Heavier duty undercarriage with bilateral supported upper rollers
- Electro-hydraulic control technology- Boom float technology- Attachment flow and pressure control
- 360 degree camera- Ground level daily inspection
- F-Series Ergonomic cab design- Intuitive operator interfaces & control

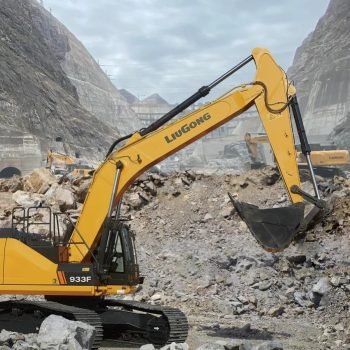

933F
Operating Weight:
34300 kg
Rated Power:
173 kW
Bucket Capacity:
1.4 m3
933F
Product Features
933F
933F
933F
Specifications
| Operating weight | 34300 kg |
| Engine power | 173 kW @ 2200 rpm |
| Std. Bucket capacity | 1.4 m3 |
| Travel speed(High) | 5.5 km/h |
| Travel speed(Low) | 3.0 km/h |
| Maximum swing speed | 10.3 rpm |
| Arm breakout force | 149 kN |
| Bucket breakout force | 203 kN |
| Shipping length | 10650 mm |
| Shipping width | 3190 mm |
| Shipping height | 3525 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6200 mm |
| Arm | 3050 mm |
| Digging reach | 10653 mm |
| Digging reach on ground | 10453 mm |
| Digging depth | 7300 mm |
| Vertical wall digging depth | 6216 mm |
| Cutting height | 10300 mm |
| Dumping height | 7265 mm |
| Minimum front swing radius | 4040 mm |
| Model | Cummins B6.7 |
| Emission | Stage V/ Tier 4F |
| System maximum flow | 2×266 L/min (2x70 gal/min) |
| System pressure | 34.3 MPa |
| Download Brochure |
| Operating weight | 34700 kg |
| Engine power | 161kW @ 2000 rpm |
| Std. Bucket capacity | 1.4 m3 |
| Travel speed(High) | 5.5 km/h |
| Travel speed(Low) | 3.0 km/h |
| Maximum swing speed | 10.3 rpm |
| Shipping length | 10692 mm |
| Shipping width | 3290 mm |
| Shipping height | 3393 mm |
| Track shoe width (std) | 700 mm |
| Boom | 6300 mm |
| Arm | 3200 mm |
| Gripping Height | 13098 mm |
| Digging reach on ground | 10453 mm |
| Dumping Height | 10210 mm |
| Gripping Depth | 5431 mm |
| Gripping Reach on Ground | 11150 mm |
| Gripping Reach | 11139 mm |
| Opening Diameter (Grab Bucket) | 2255 mm |
| Model | Cummins B6.7 |
| Emission | Stage V |
| System maximum flow | 2×266 L/min (2x70 gal/min) |
| System pressure | 34.3 MPa |
| Download Brochure |
| Operating weight | 33600 kg |
| Engine power | 169 kW @ 2200 rpm |
| Std. Bucket capacity | 1.6 m3 |
| Travel speed(High) | 5.5 km/h |
| Maximum swing speed | 10.3 rpm |
| Shipping length | 10700 mm |
| Shipping width | 3190 mm |
| Shipping height | 3525 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6200 mm |
| Arm | 3050 mm |
| Digging reach | 10653 mm |
| Digging reach on ground | 10453 mm |
| Digging depth | 7300 mm |
| Vertical wall digging depth | 6216 mm |
| Cutting height | 10300 mm |
| Dumping height | 7265 mm |
| Minimum front swing radius | 4040 mm |
| Model | Cummins QSB7 |
| Emission | Stage III |
| System maximum flow | 2×266 L/min (2x70 gal/min) |
| System pressure | 34.3 MPa |
| Download Brochure |
