933E

Heavy duty rollers, reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage. It’s this core strength that enables our customers to keep working and earning – around the clock.
ROPS (Roll Over Protection System) and FOPS (Falling Object Protection System) safeguard your most important asset: your operator in the toughest environment.
Visibility is key to protecting your operator and workers on site. The large glass surface area, increased by 15% on the E-series cab compared with our previous model, combined with the rear-view camera, provides an extraordinary view of the 933E’s surroundings.

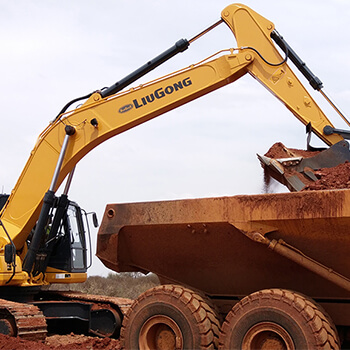

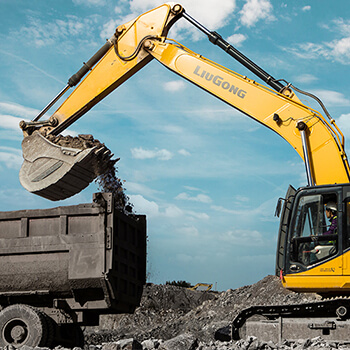

Greater hydraulic flow and higher swing speeds combine to improve cycle times by 12% on tasks such as truck loading, digging, trenching and backfilling compared with our previous model.

933E

933E－Stage II

Compare product

Operating weight	31800 kg	70107 lbs
Engine power	194 kW @ 2200 rpm	263.76 ps
Std. Bucket capacity	1.6 m3	2.1 yd3
Travel speed(High)	5.5 km/h	3 mph
Travel speed(Low)	3.0 km/h	2 mph
Maximum swing speed	10.3 rpm	10.3 rpm
Arm breakout force	137 kN	30799 lbf
Arm breakout force Power boost	149 kN	33497 lbf
Bucket breakout force	187 kN	42039 lbf
Bucket breakout force Power boost	203 kN	45636 lbf
Shipping length	10650 mm	34’11”
Shipping width	3190 mm	10’6”
Shipping height	3525 mm	11’7”
Track shoe width (std)	600 mm	1’12”
Boom	6200 mm	20’4”
Arm	3050 mm	10’
Digging reach	10653 mm	34’11”
Digging reach on ground	10453 mm	34’4”
Digging depth	7300 mm	23’11”
Vertical wall digging depth	6216 mm	20’5”
Cutting height	10300 mm	33’10”
Dumping height	7265 mm	23’10”
Minimum front swing radius	4040 mm	13’3”
Model	Cummins HM8.3	Cummins HM8.3
Emission	Stage II / Tier 2	Stage II / Tier 2
System maximum flow	2×266 L/min (2x70 gal/min)	2×266 L/min (2x70 gal/min)
System pressure	34.3 MPa	4975 psi
Download Brochure

933E－Stage IIIA

Compare product

Operating weight	31,800-32,900 kg	70107-72532 lbs
Engine power	169 kW (227 hp/230 ps) @ 2050 rpm	169 kW (227 hp/230 ps) @ 2050 rpm
Bucket capacity	1.6 m3	2.1 yd3
Travel speed(High)	5.5 km/h	3 mph
Maximum travel speed (Low)	3.0 km/h	2 mph
Maximum swing speed	10.3 rpm	10.3 rpm
Arm breakout force	137 kN	30799 lbf
Arm breakout force Power boost	149 kN	33497 lbf
Bucket breakout force	187 kN	42039 lbf
Bucket breakout force Power boost	203 kN	45636 lbf
Shipping length	10650 mm	34’11”
Shipping width	3190 mm	10’6”
Shipping height	3525 mm	11’7”
Track shoe width (std)	600 mm	1’12”
Boom	6200 mm	20’4”
Arm	3050 mm	10’
Digging reach	10653 mm	34’11”
Digging reach on ground	10453 mm	34’4”
Digging depth	7300 mm	23’11”
Vertical wall digging depth	6216 mm	20’5”
Cutting height	10300 mm	33’10”
Dumping height	7265 mm	23’10”
Minimum front swing radius	4040 mm	13’3”
Model	Cummins QSB7	Cummins QSB7
Emission	Stage IIIA	Stage IIIA
System maximum flow	2×266 L/min (2x70 gal/min)	2×266 L/min (2x70 gal/min)
System pressure	34.3 MPa	4975 psi
