925E

Product Features

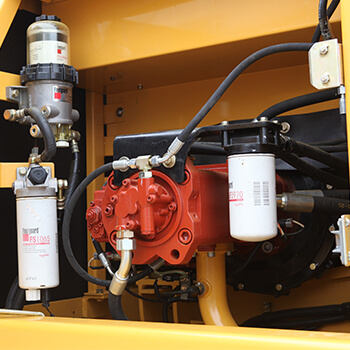

Unmatched performance driven by the Cummins engine maximizes torque output with more power and breakout force at lower engine speeds.
Hydraulic request signals detect activity, decreasing and increasing engine speed as required. Power is supplied only as needed, achieving optimum fuel efficiency.

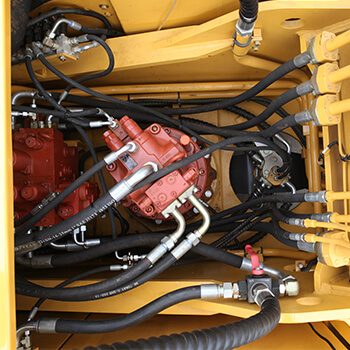

Options for auxiliary hydraulic piping include bi-directional variable high flow line, an additional line for rotating attachments and also a single acting line. The quick coupler further ensures you get the most out of your machine by easily switching between a wide range of attachments to suit your needs.

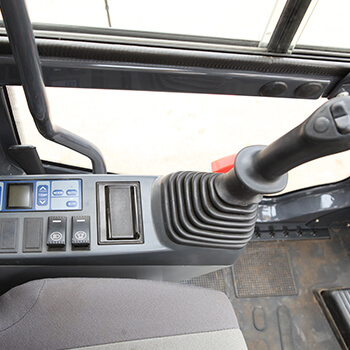

E series cab high-strength ROPS ensures operator protection meeting ISO 12117-2:2008 safety standard. Falling Object Protection System (FOPS) is optional.

Product Features

925E

925E

925E

925E

925E

925E

Specifications

925E－Stage II

Compare product

Operating weight	25500 kg	56218 lb
Engine power	133kW ( 178 hp / 181 ps) @ 2,000 rpm	133kW ( 178 hp / 181 ps) @ 2,000 rpm
Std. Bucket capacity	1.2 m3	1.57 yd3
Travel speed(High)	5.8 km/h	4 mph
Travel speed(Low)	3.5 km/h	2 mph
Maximum swing speed	12 rpm	12 rpm
Arm breakout force	124 kN	27876 lbf
Arm breakout force Power boost	134 kN	30124 lbf
Bucket breakout force	165 kN	37093 lbf
Bucket breakout force Power boost	179 kN	40241 lbf
Shipping length	10220 mm	33’6”
Shipping width	3190 mm	10’6”
Shipping height	3200 mm	10’6”
Track shoe width (std)	600 mm	1’12”
Boom	6000 mm	19’8”
Arm	2980 mm	9’9”
Digging reach	10340 mm	33’11”
Digging reach on ground	10150 mm	33’4”
Digging depth	6925 mm	22’9”
Vertical wall digging depth	5795 mm	19’
Cutting height	9865 mm	32’4”
Dumping height	6920 mm	22’8”
Minimum front swing radius	3695 mm	12’1”
Model	Cummins 6BTAA5.9-C178-II	Cummins 6BTAA5.9-C178-II
Emission	EPA Tier 2 / EU Stage II	EPA Tier 2 / EU Stage II
System maximum flow	2×240 L/min (2x63 gal/min)	2×240 L/min (2x63 gal/min)
System pressure	34.3 MPa	4975 psi
Download Brochure

925E－Stage IIIA

Compare product

Operating weight	25500 kg	56218 lb
Engine power	140 kW (188 hp / 190ps) @ 2,050 rpm	140 kW (188 hp / 190ps) @ 2,050 rpm
Std. Bucket capacity	1.2 m3	1.57 yd3
Travel speed(High)	5.5 km/h	3 mph
Travel speed(Low)	3.3 km/h	2 mph
Maximum swing speed	10.5 rpm	10.5 rpm
Arm breakout force	124 kN	27876 lbf
Arm breakout force Power boost	134 kN	30124 lbf
Bucket breakout force	165 kN	37093 lbf
Bucket breakout force Power boost	179 kN	40241 lbf
Shipping length	10220 mm	33’6”
Shipping width	3190 mm	10’6”
Shipping height	3200 mm	10’6”
Track shoe width (std)	600 mm	1’12”
Boom	6000 mm	19’8”
Arm	2980 mm	9’9”
Digging reach	10340 mm	33’11”
Digging reach on ground	10150 mm	33’4”
Digging depth	6925 mm	22’9”
Vertical wall digging depth	5795 mm	19’
Cutting height	9865 mm	32’4”
Dumping height	6920 mm	22’8”
Minimum front swing radius	3700 mm	12’2”
Model	Cummins QSB7	Cummins QSB7
Emission	Stage IIIA	Stage IIIA
System maximum flow	2×240 L/min (2x63 gal/min)	2×240 L/min (2x63 gal/min)
System pressure	34.3 MPa	4975 psi
Download Brochure

925E－Stage II / Tier2 15M Long Reach Arm

Compare product

Operating weight	27500 kg	60627 lb
Engine power	133 kW ( 178 hp / 181 ps) @ 2,000 rpm	133 kW ( 178 hp / 181 ps) @ 2,000 rpm
Std. Bucket capacity	0.58 m3	0.759 yd3
Travel speed(High)	5.8 km/h	4 mph
Travel speed(Low)	3.5 km/h	2 mph
Maximum swing speed	12 rpm	12 rpm
Arm breakout force	62 kN	13938 lbf
Bucket breakout force	89 kN	20008 lbf
Shipping length	12540 mm	41’2”
Shipping width	3390 mm	11’1”
Shipping height	3540 mm	11’7”
Track shoe width (std)	800 mm	2’7”
Boom	8500 mm	27’11”
Arm	6400 mm	20’12”
Digging reach	15720 mm	51’7”
Digging reach on ground	15620 mm	51’3”
Digging depth	11720 mm	38’5”
Vertical wall digging depth	9715 mm	31’87”
Cutting height	13695 mm	44’11”
Dumping height	11360 mm	37’3”
Minimum front swing radius	4848 mm	15’91”
Model	Cummins 6BTAA5.9-C178-Ⅱ	Cummins 6BTAA5.9-C178-Ⅱ
Emission	Stage II / Tier 2	Stage II / Tier 2
System maximum flow	2×240 L/min (2x63 gal/min)	2×240 L/min (2x63 gal/min)
System pressure	34.3 MPa	4975 psi
Download Brochure

925E－Stage III 15M Long Reach Arm

Compare product

Operating weight	27500 kg	60627 lb
Engine power	140 kW @ 2,050 rpm	140 kW @ 2,050 rpm
Std. Bucket capacity	0.58 m3	0.759 yd3
Travel speed(High)	5.5 km/h	3 mph
Travel speed(Low)	3.3 km/h	2 mph
Maximum swing speed	10.5 rpm	10.5 rpm
Arm breakout force	62 kN	13938 lbf
Bucket breakout force	89 kN	20008 lbf
Shipping length	12540 mm	41’2”
Shipping width	3390 mm	11’1”
Shipping height	3540 mm	11’7”
Track shoe width (std)	800 mm	2’7”
Boom	8500 mm	27’11”
Arm	6400 mm	20’12”
Digging reach	15720 mm	51’7”
Digging reach on ground	15620 mm	51’3”
Digging depth	11720 mm	38’5”
Vertical wall digging depth	9715 mm	31’87”
Cutting height	13695 mm	44’11”
Dumping height	11360 mm	37’3”
Minimum front swing radius	4848 mm	15’91”
Model	Cummins QSB7	Cummins QSB7
Emission	Stage IIIA	Stage IIIA
System maximum flow	2×240 L/min (2x63 gal/min)	2×240 L/min (2x63 gal/min)
System pressure	34.3 MPa	4975 psi
Download Brochure

925E－Stage III 18M Long Reach Arm

Compare product

Operating weight	29000 kg	63934.06 lbs
Engine power	140 kW (188 hp / 190 ps) @ 2,050 rpm	140 kW (188 hp / 190 ps) @ 2,050 rpm
Std. Bucket capacity	0.4 m3	0.523 yd3
Travel speed(High)	5.5 km/h	3 mph
Travel speed(Low)	3.3 km/h	2 mph
Maximum swing speed	10.5 rpm	10.5 rpm
Shipping length	14625 mm	47’12”
Shipping width	3390 mm	11’1”
Shipping height	3550 mm	11’8”
Track shoe width (std)	800 mm	2’7”
Boom	10350 mm	33’11”
Arm	8000 mm	26’3”
Digging reach	18365 mm	60’3”
Digging reach on ground	18265 mm	59’11”
Digging depth	14815 mm	48’7”
Vertical wall digging depth	11862 mm	38’92”
Cutting height	14030 mm	46’
Dumping height	11925 mm	39’1”
Minimum front swing radius	5970 mm	19’7”
Model	Cummins QSB7	Cummins QSB7
Emission	Stage IIIA	Stage IIIA
System maximum flow	2×240 L/min (2x63 gal/min)	2×240 L/min (2x63 gal/min)
System pressure	34.3 MPa	4975 psi
Download Brochure
