- Three new power modes of 922F - Power, Standard and Eco. Using Cummins VGT technology engine, delivers 5% more torque. 6 electronic fans, reduce power consumption by 60%
- Extra tough chassis - reduces stress by 10%; extra strong boom & arm - reduces stress by 30%.
- Electro-hydraulic control technology, boom float technology and attachment flow and pressure control, all these make the operation more convenient.
- Equipped with 360 degree camera and around level daily inspection.
- The NVH design reduces wind resistance and noise. Compared with traditional direct-drive fans our new electronic fans are quieter by 9%. The external radiated noise of the machine is best in class at 68dB.

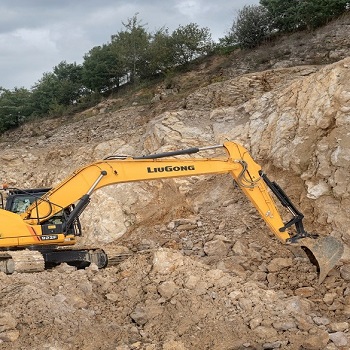

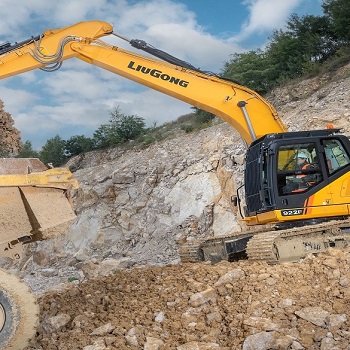

922F
Operating Weight:
22,800 kg
Rated Power:
116 kW
Bucket Capacity:
0.9-1.4 m3
922F
Product Features
922F
922F
922F
922F
Specifications
| Operating weight | 22800 kg |
| Engine power | 116 kW @ 2200 rpm |
| Std. Bucket capacity | 1.1 m3 |
| Travel speed(High) | 5.6 km/h |
| Travel speed(Low) | 3.3 km/h |
| Maximum swing speed | 10.5 rpm |
| Arm breakout force | 105 kN |
| Bucket breakout force | 152.5 kN |
| Shipping length | 9620 mm |
| Shipping width | 2990 mm |
| Shipping height | 3000 mm |
| Track shoe width (std) | 600 mm |
| Boom | 5710 mm |
| Arm | 2915 mm |
| Digging reach | 9870 mm |
| Digging reach on ground | 9720 mm |
| Digging depth | 6700 mm |
| Vertical wall digging depth | 5140 mm |
| Cutting height | 9740 mm |
| Dumping height | 7000 mm |
| Minimum front swing radius | 3135 mm |
| Model | Cummins B6.7 |
| Emission | Stage V / Tier 4F |
| System maximum flow | 2×214.5 L/min |
| Download Brochure |
| Operating weight | 22800 kg |
| Engine power | 124 kW (167 hp / 169 ps) @ 2,050 rpm |
| Std. Bucket capacity | 1.1 m3 |
| Maximum travel speed | 5.6 km/h |
| Maximum swing speed | 10.5 rpm |
| Arm breakout force | 105 kN |
| Bucket breakout force | 152.5 kN |
| Shipping length | 9620 mm |
| Shipping width | 2990 mm |
| Shipping height | 3000 mm |
| Track shoe width (std) | 600 mm |
| Boom | 5710 mm |
| Arm | 2915 mm |
| Digging reach | 9870 mm |
| Digging reach on ground | 9720 mm |
| Digging depth | 6700 mm |
| Vertical wall digging depth | 4820 mm |
| Cutting height | 9740 mm |
| Dumping height | 7000 mm |
| Minimum front swing radius | 3135 mm |
| Engine model | Cummins QSB7 |
| Emission | Stage III |
| System maximum flow | 429 L/min |
