915E

Proven negative flow hydraulics have optimize the main control valve, improved the speed of front end cylinders, while cutting down the hydraulic system’s damper loss, leading to much better working efficiency. The pilot valves matching with the main control valve offer precise control.

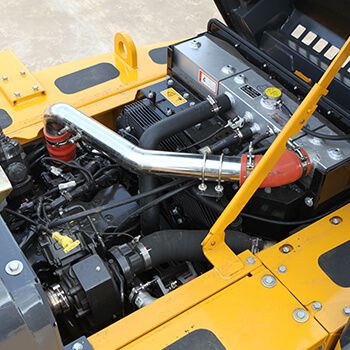

The 915E model is powered by the latest generation, low emission Cummins engine, with enhanced power output, improved breakout force and faster cycle times.
The LiuGong E series excavator features 6 selectable working modes that optimize performance and fuel consumption to your specific conditions

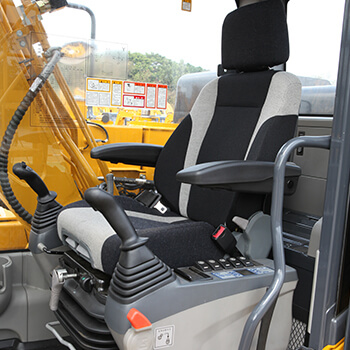

Ergonomically designed cab for LiuGong E series excavator, with great visibility, expansive leg room, new multi-function LCD monitor, automatic air conditioner, large storage space, provide most comfortable working environment

915E

915E－Stage IIIA

Compare product

Operating weight	14050 kg	30975 Ib
Engine power	86 kW (115 hp/117 ps) @ 2200 rpm	86 kW (115 hp/117 ps) @ 2200 rpm
Std. Bucket capacity	0.6 m3	0.78 yd3
Travel speed(High)	5.1 km/h	3 mph
Travel speed(Low)	3.3 km/h	2 mph
Maximum swing speed	12.94 rpm	12.94 rpm
Arm breakout force	64.9 kN	14590 lbf
Arm breakout force Power boost	70 kN	15737 lbf
Bucket breakout force	89.8 kN	20188 lbf
Bucket breakout force Power boost	96.9 kN	21784 lbf
Shipping length	7750 mm	25’5”
Shipping width	2490 mm	8’2”
Shipping height	2930 mm	9’7”
Track shoe width (std)	500 mm	1’8”
Boom	4600 mm	15’1”
Arm	2500 mm	8’2”
Digging reach	8300 mm	27’3”
Digging reach on ground	8170 mm	26’10”
Digging depth	5470 mm	17’11”
Vertical wall digging depth	4770 mm	15’8”
Cutting height	8760 mm	28’9”
Dumping height	6310 mm	20’8”
Minimum front swing radius	2470 mm	8’1”
Model	Cummins QSF 3.8	Cummins QSF 3.8
Emission	Stage IIIA	Stage IIIA
System maximum flow	2x120 L/min (2x32 gal/min)	2x120 L/min (2x32 gal/min)
System pressure	34.3 MPa	4975 psi
Download Brochure

915E－Tier 4F

Compare product

Operating weight	15400 kg	33951 lb
Engine power	90 kW (121 hp/123 ps) @ 2200 rpm	90 kW (121 hp/123 ps) @ 2200 rpm
Std. Bucket capacity	0.6 m3	0.78 yd3
Travel speed(High)	5.4 km/h	3 mph
Travel speed(Low)	3.2 km/h	2 mph
Maximum swing speed	12.94 rpm	12.94 rpm
Arm breakout force	64.9 kN	14590 lbf
Arm breakout force Power boost	70 kN	15737 lbf
Bucket breakout force	89.8 kN	20188 lbf
Bucket breakout force Power boost	96.9 kN	21784 lbf
Shipping length	7750 mm	25’5”
Shipping width	2690 mm	8’10”
Shipping height	2930 mm	9’7”
Track shoe width (std)	700 mm	2’4”
Boom	4600 mm	15’1”
Arm	2500/2900 mm	8’2”/9’6”
Digging reach	8300/8720 mm	27’3”/28’7”
Digging reach on ground	8170/8620 mm	26’10”/28’3”
Digging depth	5470/5870 mm	17’11”/19’3”
Vertical wall digging depth	4770/5160 mm	15’8”/16’11”
Cutting height	8760/9040 mm	28’9”/29’8”
Dumping height	6310/6590 mm	20’8”/21’7”
Minimum front swing radius	2470/2545 mm	8’1”/8’4”
Model	Cummins QSB 4.5	Cummins QSB 4.5
Emission	EU Stage IV / Tier 4F	EU Stage IV / Tier 4F
System maximum flow	2x120 L/min ( 2x32 gal/min)	2x120 L/min ( 2x32 gal/min)
System pressure	34.3 MPa	4975 psi
