- Zero tail swing
- Ergonomically designed cab and ergonomic placement of instruments
- Open ROPS available

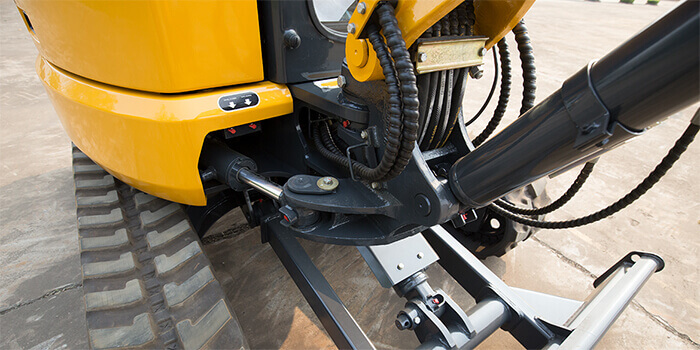

- Hammer/Shear hydraulics and piping

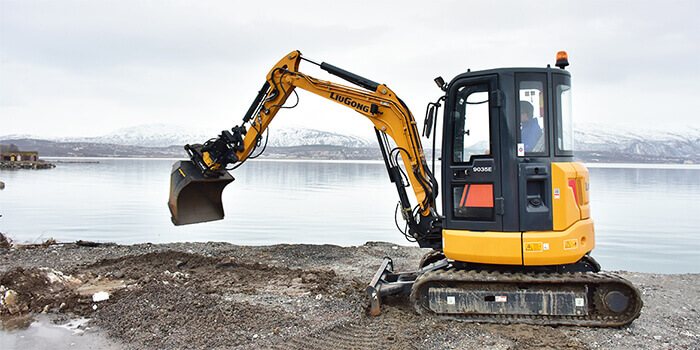

9035E
Operating Weight:
3,860-3,980 kg
Rated Power:
21.2 kW
Bucket Capacity:
0.045-0.18 m3
9035E
Product Features
9035E
9035E
Specifications
| Operating weight with cab | 3980 kg |
| Operating weight with canopy | 3860 kg |
| Engine power | 21.2 kW (28.4 hp) @ 2400 rpm |
| Std. Bucket capacity | 0.11 m3 |
| Travel speed(High) | 4.2 km/h |
| Travel speed(Low) | 2.5 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 20 kN |
| Bucket breakout force | 30 kN |
| Shipping length | 4810 mm |
| Shipping width | 1700 mm |
| Shipping height | 2500/2581 mm (cab/canopy) |
| Track shoe width (std) | 300 mm |
| Boom | 2450 mm |
| Arm | 1320 mm |
| Digging reach | 5385 mm |
| Digging reach on ground | 5270 mm |
| Digging depth | 3085 mm |
| Vertical wall digging depth | 2503 mm |
| Cutting height | 4710 mm |
| Dumping height | 3310 mm |
| Minimum front swing radius | 2416 mm |
| Dozer-up | 370 mm |
| Dozer-down | 390 mm |
| Swing boom left rotation | 70° |
| Swing boom right rotation | 50° |
| Model | Yanmar 3TNV88-BPLY |
| Emission | EU Stage IIIA |
| System maximum flow | 92.4 L/min |
| System pressure | 24.5 MPa |
| Download Brochure |
| Operating weight with cab | 3980 kg |
| Operating weight with canopy | 3860 kg |
| Engine power | 18.2 kW (24.4 hp) @ 2200 rpm |
| Std. Bucket capacity | 0.11 m3 |
| Travel speed(High) | 4.2 km/h |
| Travel speed(Low) | 2.5 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 20 kN |
| Bucket breakout force | 30 kN |
| Shipping length | 4810 mm |
| Shipping width | 1700 mm |
| Shipping height | 2500/2581 mm (cab/canopy) |
| Track shoe width (std) | 300 mm |
| Boom | 2450 mm |
| Arm | 1320 mm |
| Digging reach | 5385 mm |
| Digging reach on ground | 5270 mm |
| Digging depth | 3085 mm |
| Vertical wall digging depth | 2503 mm |
| Cutting height | 4710 mm |
| Dumping height | 3310 mm |
| Minimum front swing radius | 2416 mm |
| Dozer-up | 370 mm |
| Dozer-down | 390 mm |
| Swing boom left rotation | 70° |
| Swing boom right rotation | 50° |
| Model | Yanmar 3TNV88F-ESLY |
| Emission | Tier 4 F / Stage V |
| System maximum flow | 92.4 L/min ( 24 gal/min) |
| System pressure | 24.5 MPa |
