- High-efficiency high-torque reluctance motor matches the low-speed working conditions of the excavator, and combined with the new load-sensitive hydraulic system, the efficiency is improved even more.
- Large-capacity lithium iron phosphate battery, longer cycle life and better safety performance. Cobalt-free, more environmentally friendly.
- True zero-tail body design, the operator does not have to worry about the obstacles at the back of the machine, easier to operate and more efficient, with the deflectable rotating arm, left 74°, right 55°, can easily realize the operation in the narrow and restricted space such as the corner of the wall.
- New 5-inch touch screen, integrated control panel, equipped with one-key start and automatic stop function.
- Two charging modes, support household 110V~230V AC charging / industrial 380V DC charging (need to match the charger), to meet the charging needs in different situations.

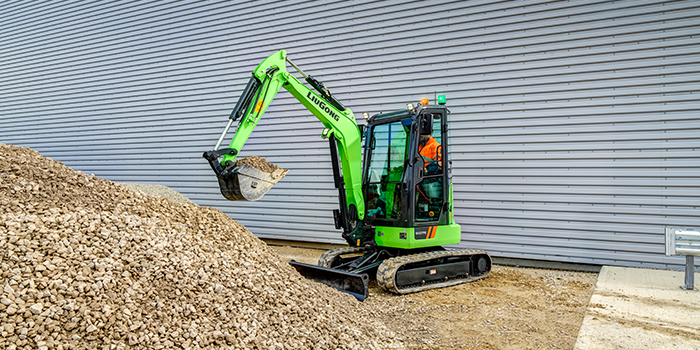

9027FE
Operating Weight:
2,750 kg
Rated Power:
16.5 kW
Bucket Capacity:
0.08 m3
9027FE
Product Features
9027FE
Specifications
| Operating Weight | 2,750 kg |
| Rated Storage Capacity | 20.6 kWh |
| Rated Power | 16.5 kW |
| Standard Bucket Capacity | 0.08 m3 |
| Arm Digging Force | 12 kN |
| Bucket Digging Force | 20 kN |
| Drawbar Pull | 21.1 kN |
| Max. Digging Reach | 4,757 mm |
| Max. Dumping Height | 3,067 mm |
| Shipping Dimension L*W*H | 4160*1550*1550 mm |
