9018F

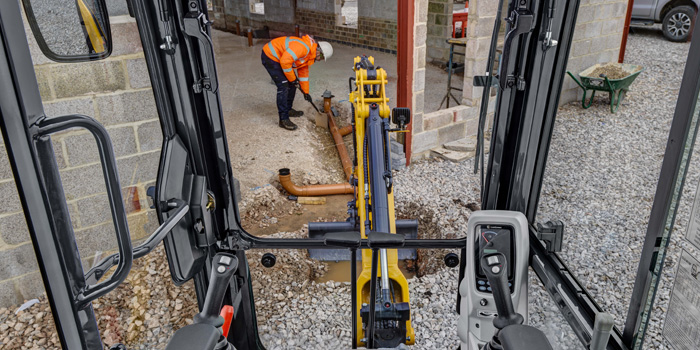

With high-visibility cabs, protected by ROPS & TOPS
Save more with the optional AUTO-IDLE speed function
When space is tight, the neat compact design with short tail swing gets you to work
Control is everything. Load sensing hydraulics deliver precise and smooth operation for excellent grading performance
Could be equipped with Air Conditioning

9018F

9018F－Tier 4F / Stage V

Compare product

Operating weight with cab	1900 kg	4189 lb
Operating weight with canopy	1800 kg	3968 lb
Engine power	13.4 kW (18 hp) @ 2,200 rpm	13.4 kW (18 hp) @ 2,200 rpm
Std. Bucket capacity	0.045 m3	0.06 yd3
Travel speed(High)	4.5 km/h	3 mph
Travel speed(Low)	2.7 km/h	2 mph
Maximum swing speed	9.5 rpm	9.5 rpm
Arm breakout force	9 kN	2023 lbf
Bucket breakout force	16 kN	3597 lbf
Shipping length	3707 mm	12’2”
Shipping width	980 / 1290 mm	3’3”/4’3”
Shipping height	2350 mm	7’9”
Track shoe width (std)	230 mm	9”
Boom	1685 mm	5’6”
Arm	1070 mm	3’6”
Digging reach	3910 mm	12’10”
Digging reach on ground	3850 mm	12’8”
Digging depth	2290 mm	7’6”
Vertical wall digging depth	1820 mm	5’12”
Cutting height	3385 mm	11’1”
Dumping height	2370 mm	7’9”
Minimum front swing radius	1660 mm	5’5”
Dozer-up	240 mm	9”
Dozer-down	240 mm	9”
Swing boom left rotation	72 °	72 °
Swing boom right rotation	58 °	58 °
Model	Yanmar 3TNV80F-SSLY	Yanmar 3TNV80F-SSLY
Emission	EU Stage V / Tier 4f	EU Stage V / Tier 4f
System maximum flow	55 L/min ( 14.5 gal/min)	55 L/min ( 14.5 gal/min)
System pressure	21 MPa	3046 psi
