- Customized engine is perfectly matched power-train for high efficiency and low fuel consumption.
- The hydraulic system has a dual-pump confluence with steering always in priority, reducing energy loss.
- Robust design of frame structure, wide spread hitch and wear-resistance bucket for maixmum durability.
- Pressurized cab, 309° panoramic visibility, ergonomically design and three-stage vibration reduction give the operator a safe and comfortable work environment.
- Wide open access to all servicing points for easy serviceabilty.

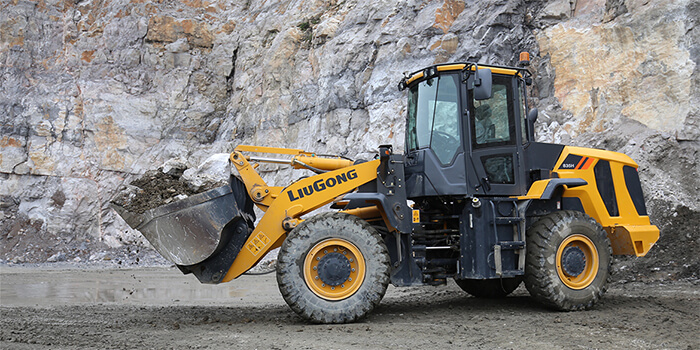

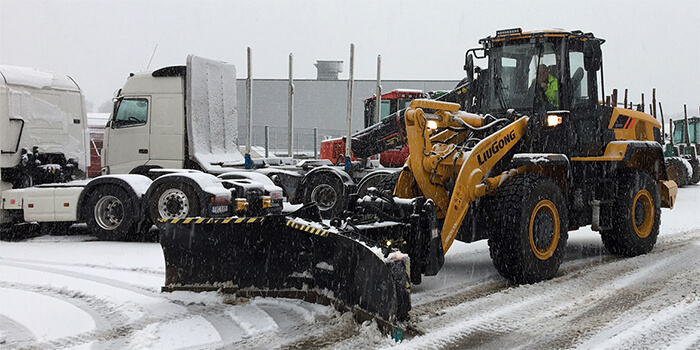

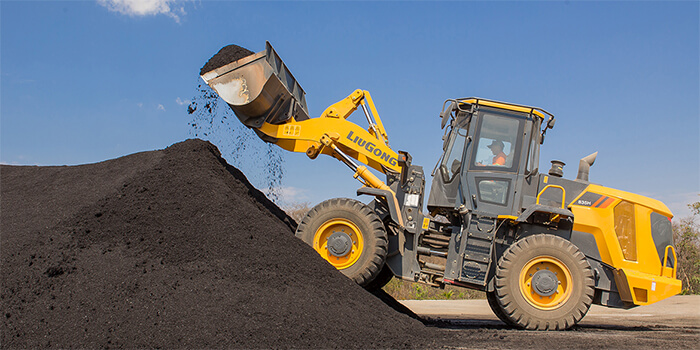

835H
Operating weight:
10,125 - 13,050 kg
Rated power:
92 / 115 kW
Rated load capacity:
3,000 / 3,500 kg
835H
Product Features
835H
835H
835H
835H
Specifications
| Operating weight | 10,125 kg |
| Standard bucket | 1.8 m3 |
| Rated power | 92 kW (123 hp / 125 ps) @ 2000 rpm |
| Maximum gross power | 92 kW (123 hp / 125 ps) @ 2000 rpm |
| Rated load capacity | 3000 kg |
| Hydraulic cycle time | 9.7 s |
| Raise time | 5.5 s |
| Maximum travel speed | 36 km/h |
| Tipping load-full turn | 6,700 kg |
| Bucket breakout force | 102 kN |
| Dump clearance, full height discharge | 2930 mm |
| Dump reach, full height discharge | 1,035 mm |
| Model | YC6J125Z-T22 |
| Emissions | EPA Tier 2 / EU Stage II |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 7,150 mm |
| Width over tires | 2,295 mm |
| Cab height | 3,340 mm |
| Turning radius, outside of tire | 5,090 mm |
| Bucket capacity | 1.5-3.0 m3 |
| General purpose bucket | 1.8 m3 |
| Light material bucket | / |
| Rock bucket | 1.5 m3 |
| Download Brochure |
| Operating weight | 12,725 kg |
| Standard bucket | 1.9 m3 |
| Rated power | 115 kW (154 hp / 156 ps) @ 2200 rpm |
| Maximum gross power | 115 kW (154 hp / 156 ps) @ 2200 rpm |
| Rated load capacity | 3,500 kg |
| Hydraulic cycle time | 9.4 s |
| Raise time | 4.8 s |
| Maximum travel speed | 38 km/h |
| Tipping load-full turn | 7,475 kg |
| Bucket breakout force | 121 kN |
| Dump clearance, full height discharge | 2,680 mm |
| Dump reach, full height discharge | 1,168 mm |
| Model | Cummins B4.5 |
| Emissions | EU Stage V |
| Aspiration | Turbocharged ﹠ air-to-air intercooled |
| Length with bucket down | 7,347 mm |
| Width over tires | 2,355 mm |
| Cab height | 3,370 mm |
| Turning radius, outside of tire | 5,313 mm |
| Bucket capacity | 1.8-4.0 m3 |
| General purpose bucket | 1.9 m3 |
| Light material bucket | / |
| Rock bucket | / |
