- Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.
- With dual frequency and double amplitude vibratory mode, our rollers generate industry leading centrifugal compaction force.

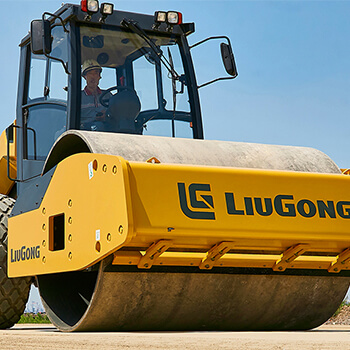

- With a larger diameter drum, combined with amplitude consistency and uniformity, we ensure that the optimum compaction force is delivered with fewer passes required.
6612E
Operating weight:
12,200 kg
Rated power:
118 kW
Vibration frequency:
30/33 Hz
6612E
Product Features
6612E
6612E
6612E
6612E
6612E
6612E
Specifications
| Operating Mass | 12200 kg |
| Mass On Vibrating Drum | 7200 kg |
| Mass On Drive Axle | 5000 kg |
| Front Drum Static Linear Load | 331 N/cm |

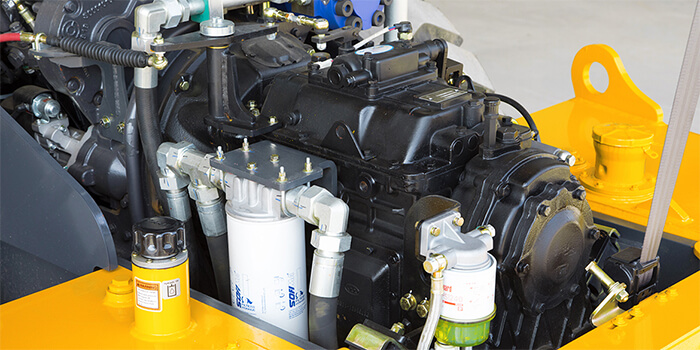

| Model | Cummins 6BTAA5.9-C160 |
| Emission Regulation | Stage II |
| Rated Power | 118 kW (160 hp) @ 2200 rpm |
| Vibration Frequency | 30/33 Hz |
| Nominal Amplitude | 2.0/1.1 mm |
| Centrifugal Force | 300/190 kN |
| Drum Diameter | 1555 mm |
| 1st Maximum Speed, fwd | 4.5 km/h |
| 2nd Maximum Speed, fwd | 6.1 km/h |
| 3rd Maximum Speed, fwd | 6.7 km/h |
| 4th Maximum Speed, fwd | 12 km/h |
| Theoretical Gradeability | 50% |
| Min. GroundClearance | 470 mm |
| Wheelbase | 2980 mm |
| Min. Outside Turning Radius | 6500 mm |
| Overall Length | 6000 mm |
| Overall Width | 2280 mm |
| Overall Height | 3080 mm |
| Operating Mass | 12200 kg |
| Mass On Vibrating Drum | 7200 kg |
| Mass On Drive Axle | 5000 kg |
| Front Drum Static Linear Load | 331 N/cm |
| Model | Cummins QSB4.5 |
| Emission Regulation | Stage III |
| Rated Power | 119 kW (162 hp) @ 2200 rpm |
| Vibration Frequency | 30/33 Hz |
| Nominal Amplitude | 2.0/1.1 mm |
| Centrifugal Force | 300/190 kN |
| Drum Diameter | 1555 mm |
| 1st Maximum Speed, fwd | 4.5 km/h |
| 2nd Maximum Speed, fwd | 6.1 km/h |
| 3rd Maximum Speed, fwd | 6.7 km/h |
| 4th Maximum Speed, fwd | 12 km/h |
| Theoretical Gradeability | 50% |
| Min. GroundClearance | 470 mm |
| Wheelbase | 2980 mm |
| Min. Outside Turning Radius | 6500 mm |
| Overall Length | 6000 mm |
| Overall Width | 2280 mm |
| Overall Height | 3080 mm |
