- Top quality compaction is achieved by the kneading and rolling effect of the wheels as vertical pressure combined with horizontal forces produce an excellent, uniform surface finish.

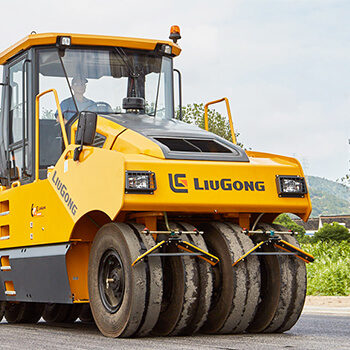

- On uneven surfaces, our patented Tire Suspension System, equipped with a tiltable front shaft, enables the 4 front wheels to swing up and down by +/- 8° achieving maximum ground contact for each wheel. This delivers optimum compact and improves safety by helping prevent the roller from tilting over.

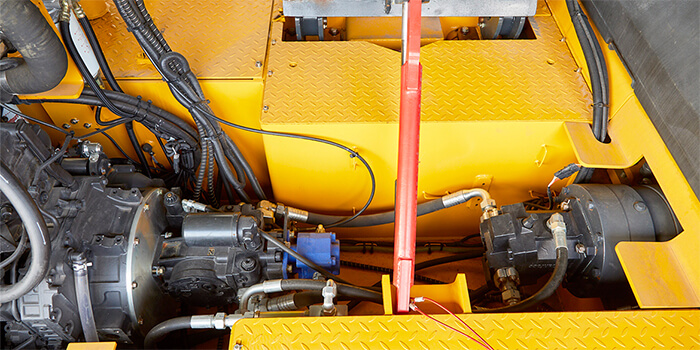

- Safety is further enhanced with a three-stage breaking system utilizing hydraulics, oil cut-off and wheel side oil breaking. This three stage system protects the operator, site workers and members of the public from accidents.

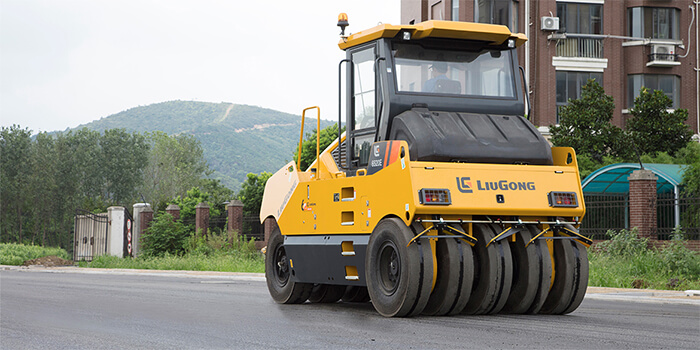

6520E
Operating weight:
20,000 kg
Rated power:
97 kW
Single tire load:
2222 kg
6520E
Product Features
6520E
6520E
6520E
6520E
6520E
Specifications
| Max. Operating Mass | 20000 kg |
| Min. Operating Mass | 11000 kg |
| Single Tire Load | 2222 kg |
| Overlapping of Front & Rear Tire | 45 mm |
| Model | Cummins QSB4.5-C130 |
| Emission Regulation | Stage III |
| Rated Power | 97 kW (132 hp) @ 2200 rpm |
| Working Speed | 0-7 km/h |
| Traveling Speed | 0-16 km/h |
| Compacting Width | 2250 mm |
| Theoretical Gradeability | 20% |
| Min. Ground Clearance | 290 mm |
| Wheelbase | 3600 mm |
| Min. Outside Turning Radius | 8000 mm |
| Tire Type | 11.00-20-16PR |
| Tire Numbers | Front 4 Rear 5 |
| Overall Length | 4800 mm |
| Overall Width | 2310 mm |
| Overall Height | 3270 mm |
