- Flexible and non-impact technology on our vibratory rollers extends the vibratory bearing’s working life to beyond 10,000 hours increasing productivity and reducing part wear.
- LiuGong’s innovative auto throttle reduces fuel consumption by automatically switching the engine to idling mode during periods of inactivity.
- Soft starting and braking technology significantly improves the operator’s experience helping to reduce pavement damage and ensure a high quality finish to every job.

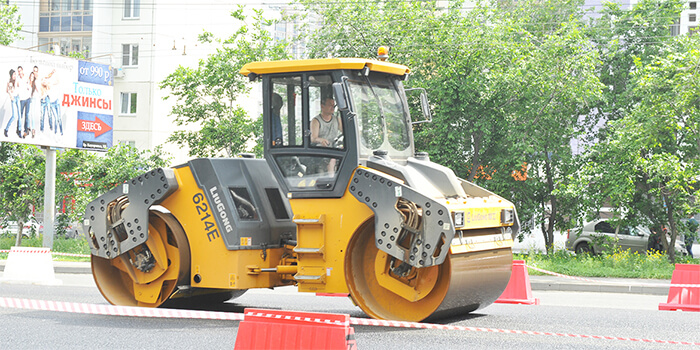

6214E
Operating weight:
14,000 kg
Rated power:
119 kW
Vibration frequency:
45/50 Hz
6214E
Product Features
6214E
6214E
6214E
6214E
6214E
6214E
Specifications
| Operating Mass | 14000 kg |
| Mass On Front Drum | 7000 kg |
| Mass On Rear Axle | 7000 kg |
| Front Drum Static Linear Load | 329 N/cm |
| Rear Drum Static Linear Load | 329 N/cm |
| Model | Cummins QSB4.5 |
| Emission Regulation | Stage III |
| Rated Power | 119 kW (162 hp) @ 2200 rpm |
| Vibration Frequency Low | 45/50 Hz |
| Nominal Amplitude Low | 0.75/0.4 mm |
| Centrifugal Force Low | 166/99 kN |
| Vibration Frequency High | 50/67 Hz |
| Nominal Amplitude High | 0.8/0.3 mm |
| Centrifugal Force High | 185/115 kN |
| Drum Diameter | 1350 mm |
| Drum Width | 2130 mm |
| 1st Maximum Speed, fwd | 0-6 km/h |
| 2nd Maximum Speed, fwd | 0-8 km/h |
| 3rd Maximum Speed, fwd | 0-12 km/h |
| Theoretical Gradeability | 40% |
| Min. Ground Clearance | 345 mm |
| Wheelbase | 3585 mm |
| Min. Outside Turning Radius | 6770 mm |
| Overall Length | 5050 mm |
| Overall Width | 2300 mm |
| Overall Height | 3195 mm |
