- B320C bull dozer is powered by Cummins engine with a rated power output of 257 kW.
- Load sensing hydraulics delivers high drawbar pull forces with precise control delivering power to where the operator really needs it.
- The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood.

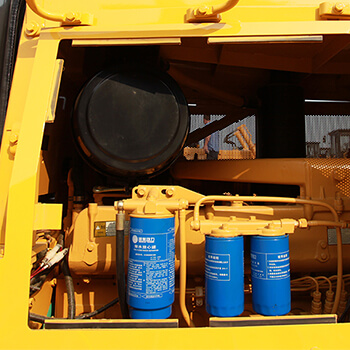

- Maintenance speed and access is further improved with automatic greasing system and auto track tensioning fitted as option.

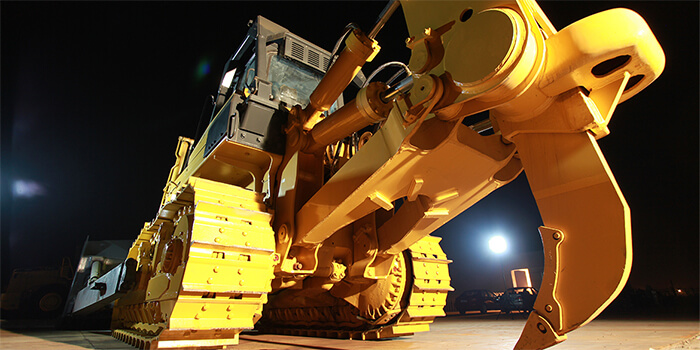

- Adjustment of the ripper becomes easier because the rack position can be adjusted in the cab.
320C
Operating weight:
34015 kg
Engine power:
257 kW
Blade capacity:
10.4 m3
320C
Product Features
320C
320C
320C
320C
320C
320C
Specifications
| Operating weight | 34015 kg |
| Engine power | 257 kW (345 hp) @ 2000 rpm |
| Max travel speed, fwd | 11.8 km/h |
| Max travel speed, rev | 13.7 km/h |
| No. of speeds, fwd | 3 |
| No. of speeds, rev | 3 |
| Referenced Shoe width | 560 mm |
| Ground pressure | 94 kPa |
| Blade type | Straight |
| Blade capacity | 10.4 m3 |
| Depth below ground | 560 mm |
| Lift above ground | 1380 mm |
| Blade angle | 14 ° |
| Blade tilt | 1000 mm |
| Transport length | 6590 mm |
| Transport width | 4130 mm |
| Transport height | 3910 mm |
| Model | Cummins |
| Emission | Stage II / Stage III |
| Ripper options | Single-shank ripper；Three-shank ripper |
| Blade options | Straight; Semi-U blade |
