- The whole machine features advanced performance, effective matching of the power transmission system, and high working efficiency
- With the fuel tank positioned on the left side of the machine body, the ultra-large rear space makes the care and maintenance of steering and brake systems easy.
- The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load- carrying from the frame and front hood. This prevents damage of the transmission system due to the frame being deformed by torsion force, while promoting the performance and reliability of the whole machine.
160C
Operating weight:
17000 kg
Engine power:
131kW
Blade capacity:
4.5 m3
160C
Product Features
160C
160C
160C
160C
160C
160C
160C
160C
Specifications
| Operating weight | 17000 kg |
| Engine power | 131 kW (176hp) @ 1850 rpm |
| Max travel speed, fwd | 9.72 km/h |
| Max travel speed, rev | 12.64 km/h |
| No. of speeds, fwd | 3 |
| No. of speeds, rev | 3 |
| Referenced Shoe width | 510 mm |
| Ground pressure | 67 kPa |

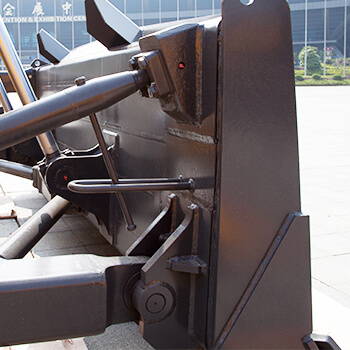

| Blade type | Straight |
| Blade capacity | 4.5 m3 |
| Depth below ground | 540 mm |
| Lift above ground | 1076 mm |
| Blade angle | 7 ° |
| Blade tilt | 440/470 mm |
| Transport length | 5180 mm |
| Transport width | 3422 mm |
| Transport height | 3200 mm |
| Model | Weichai |
| Emission | Stage II / Stage III |

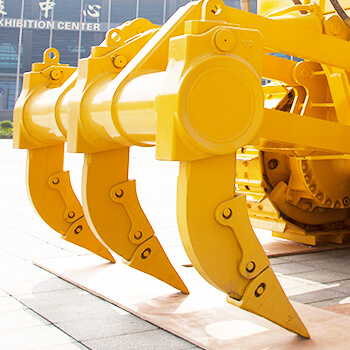

| Ripper options | Three-shank ripper |
| Hydraulic winch options | Yes |
| Blade options | Straight; Angle; Full-U; Landfill?blade |
